Portfolio: Technical Drawings
These drawings were generated through the disassembly and study of actual components.

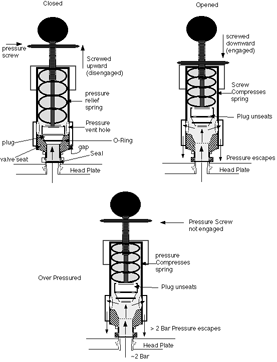

Fermenter Pressure Relief Valve
Clarisworks, 1998

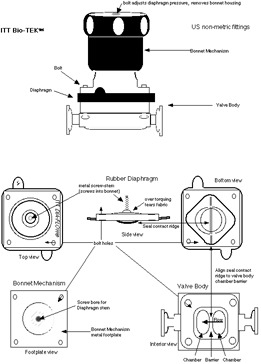

ITT Biotek Diaphragm Valve
Clarisworks, 1997

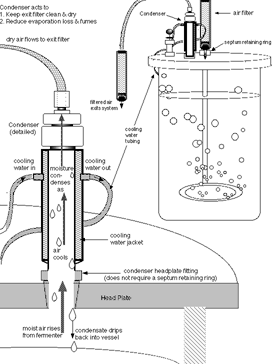

Fermenter Air Exit Condenser
Clarisworks, 1998

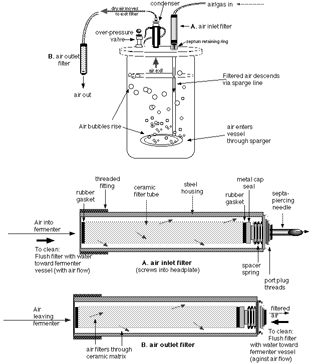

Fermenter Air Flow Schematic with Filters
Clarisworks, 1998

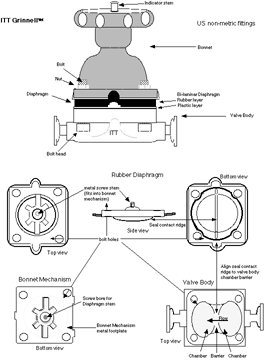

ITT Grinnell Diaphragm Valve
Clarisworks, 1998

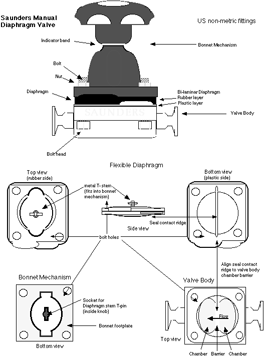

Saunders Manual Diaphragm Valve
Clarisworks, 1997
Saunders BioSeal Diaphragm Valve
Clarisworks, 1997

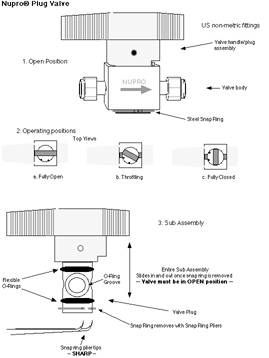

Nupro Plug Valve
Clarisworks, 1998

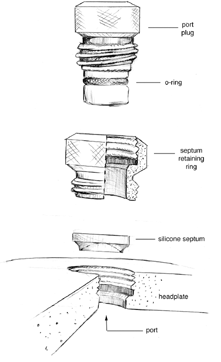

Port Plug Assembly
Paper and pencil, 1998
